Products- iRobo Automation

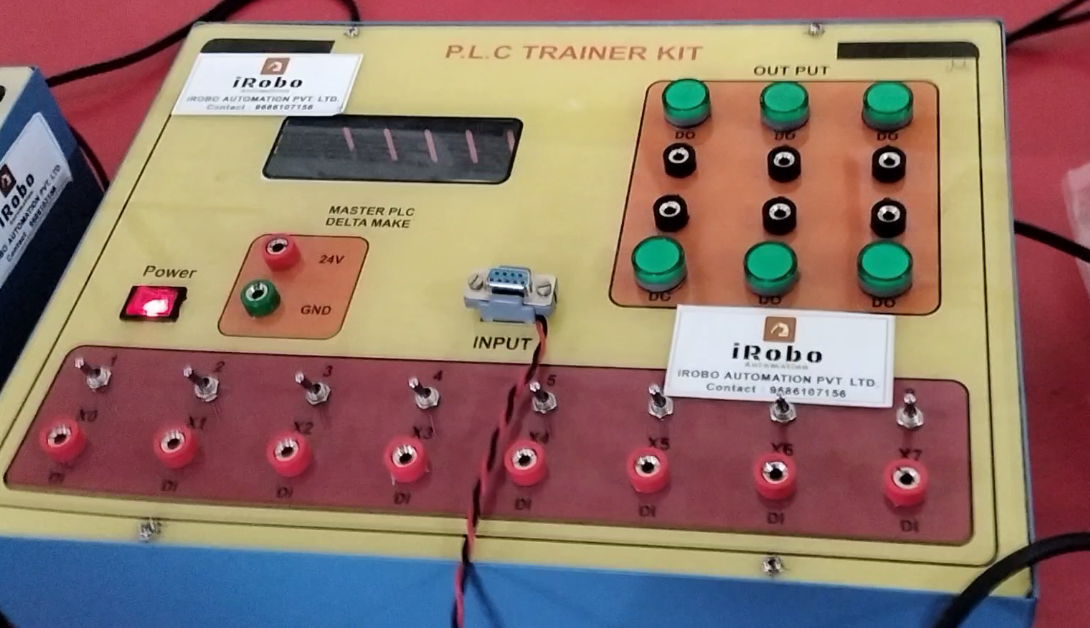

PLC Trainer kit – Delta make
PLC Trainer kit – Delta make
- Digital inputs (DI) – 8
- Digital outputs (DO) – 6
- Communication: RS232 and RsS485
- Built-in 24VDC power supply.
- Power terminals to interface project module or external device such as HMI
- Light weight panel for PLC trainer kit.
- 4 bush buttons are wired to 4 PLC digital inputs
- 4 toggle switches are wired to 4 PLC digital inputs.
- 6 LEDs are wired to PLC outputs.
- RS 232 to USB converting cable is provided.
- Red and blue color patch cords 5Qty each are provided

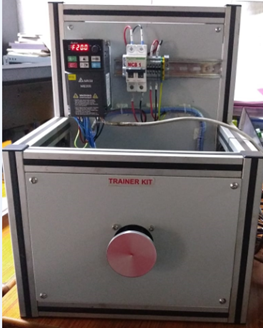

VFD Trainer kit
VFD Trainer kit
- Ergonomically designed Frame and support for VFD and motor.
- 1 HP variable frequency drive – Delta make
- 25Hp 1Phase to 3Phase induction motor.
- MCB for motor protection.
- Panel for controlling ON/OFF, speed and direction of motor.
- Relay module to interface with PLC (two channel relay module) – 24V relay module.

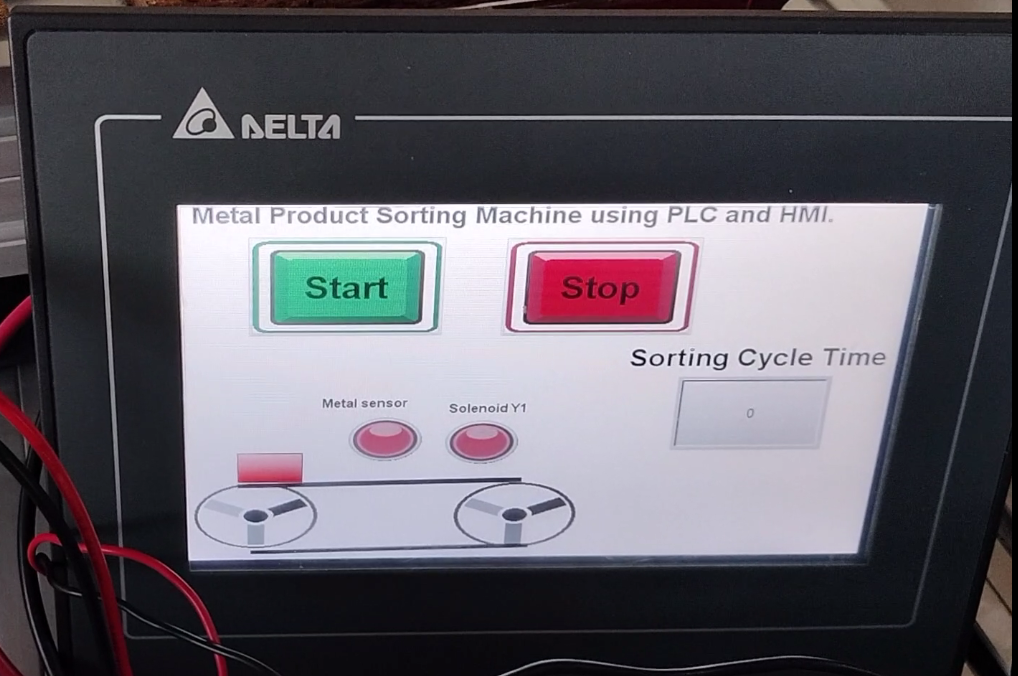

Human Machine interface (HMI)
Human Machine interface (HMI)
- 7” inch HMI screen
- Mounting for HMI
- RS485 cable
- DB9 with cable configuration.
- Communication cable from PC to HMI.

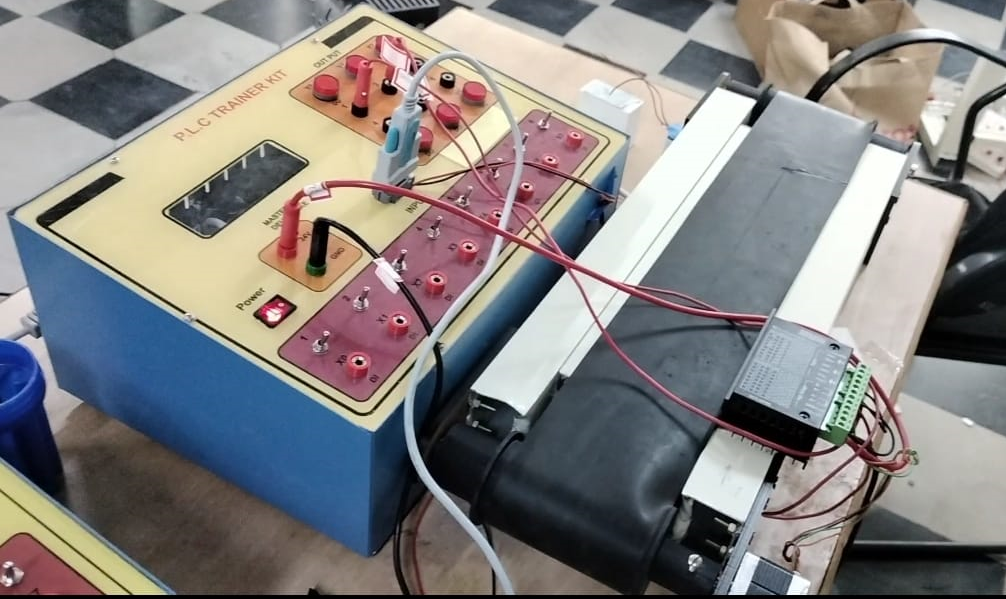

PLC trainer kit with conveyor belt system
PLC trainer kit with conveyor belt system
- Model: Delta DVP14SS2 PLC Trainer Kit
- PLC Series: DVP-SS2 Series
- Input Points: 8 Digital Inputs (DI) – 24VDC
- Output Points: 6 Transistor Sinking Outputs (DO) – 24VDC, 0.5A
- Programming Language: Ladder Diagram (LD), Function Block Diagram (FBD)
- Communication Ports: Built-in RS-232, RS-485 communication ports
- Memory Capacity: 16k steps program capacity
- Scan Time: 1ms per 1k steps
- Power Supply: 24VDC (Included in the trainer kit)
- Programming Software: Delta ISPSoft or WPLSoft
- Conveyor Motor: 12V DC motor
- Conveyor belt Length: 500mm (customizable)
- Belt material: Rubber material

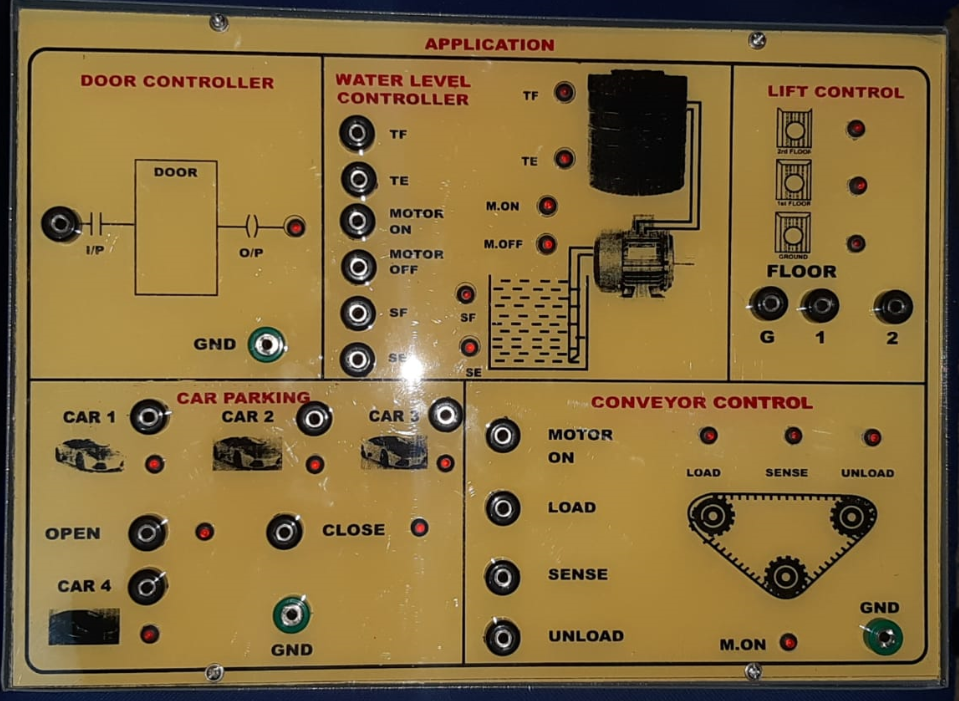

Static application panels
Static application panels
- Water level controller
- Car parking
- Alarm system
- Conveyor control
- Door Controller
- DOL starter
- Washing machine
- Traffic light controller
- Stair case Light controller

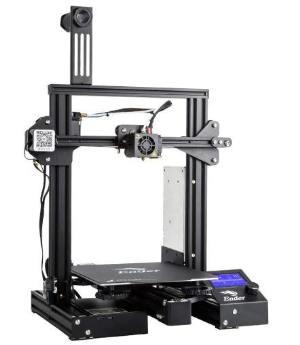

3D printer with Encloser
Spherical Robot for pick and place applications
Articulated Robot for pick and place applications

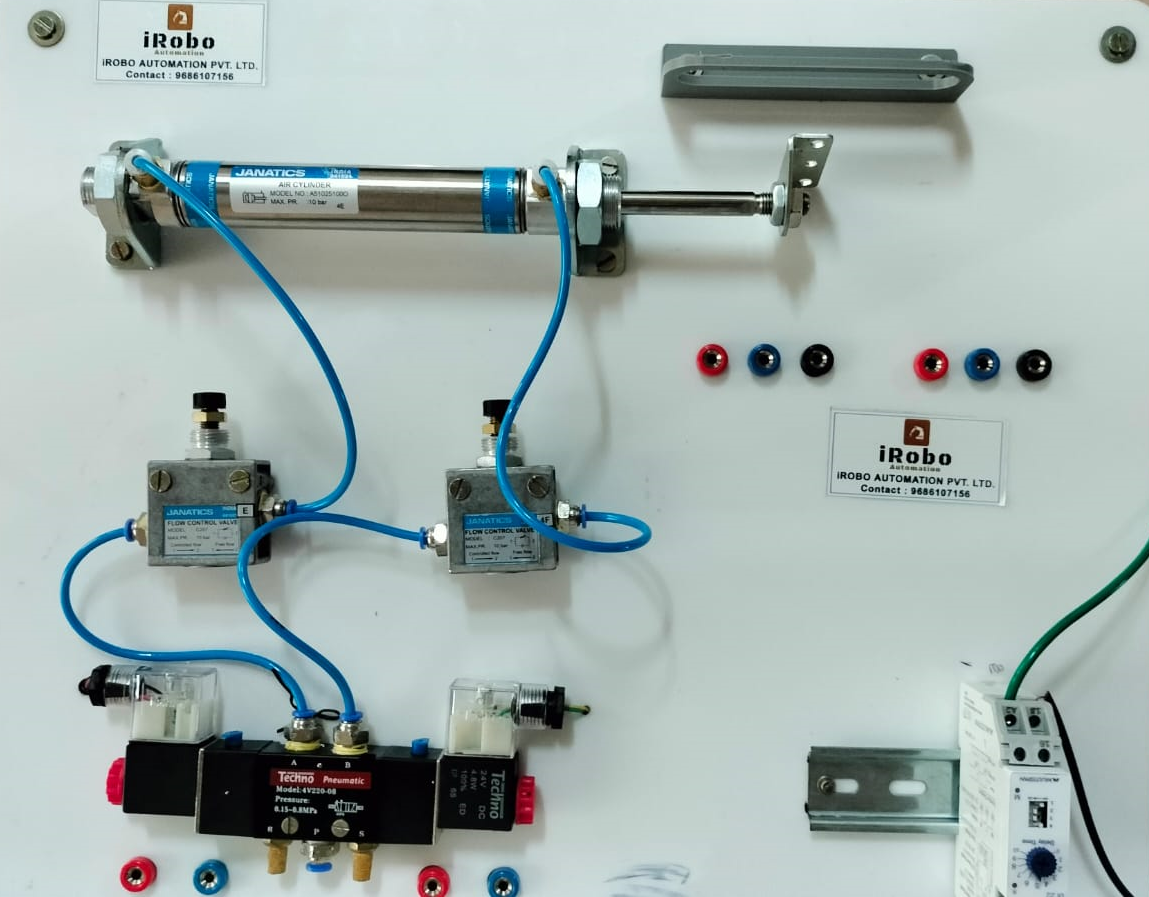

Electro pneumatic kit – Double acting cylinder
Cartesian Robot for pick and place applications

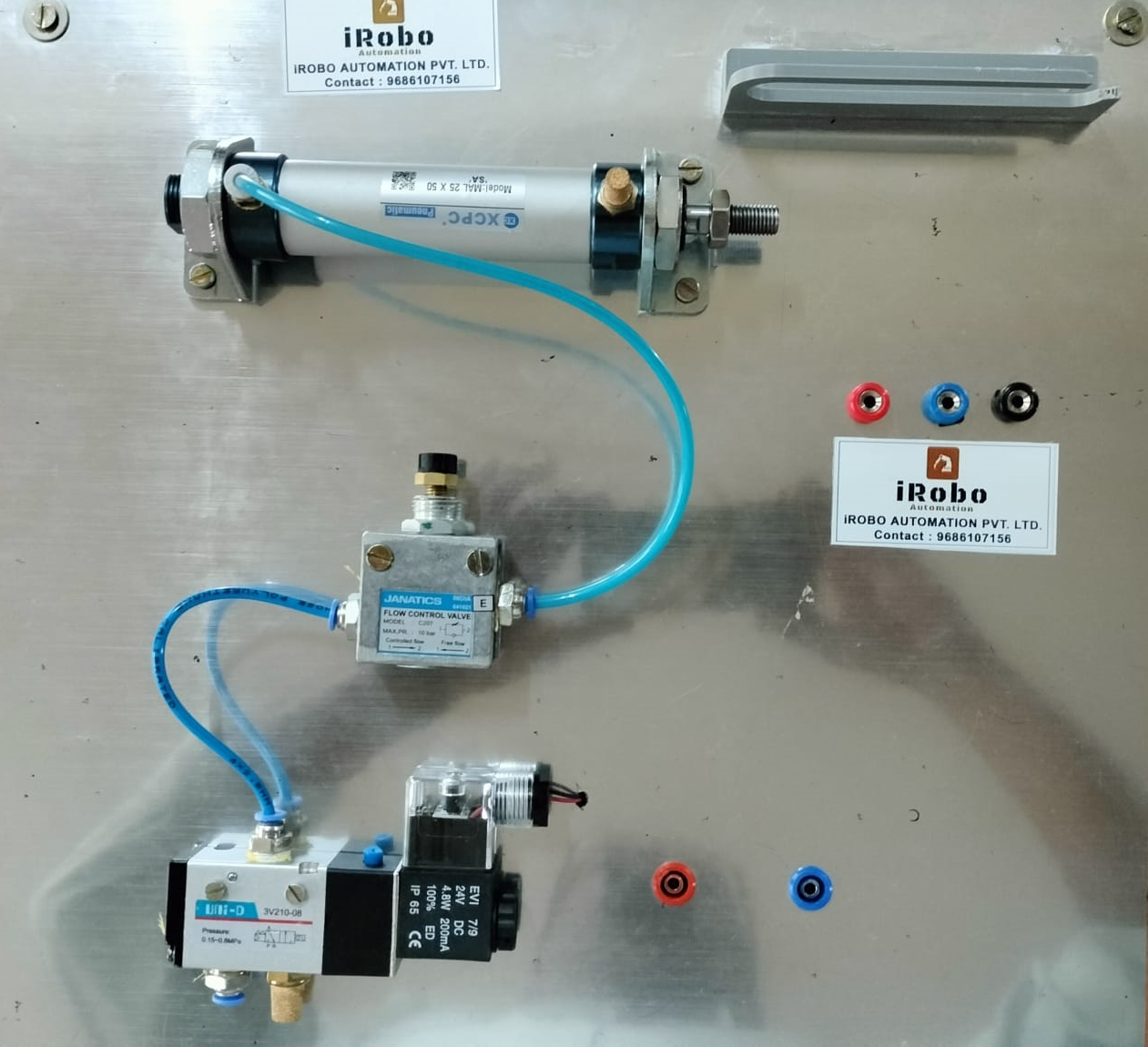

Electro pneumatic kit – Single acting cylinder
Cylindrical Robot for pick and place applications

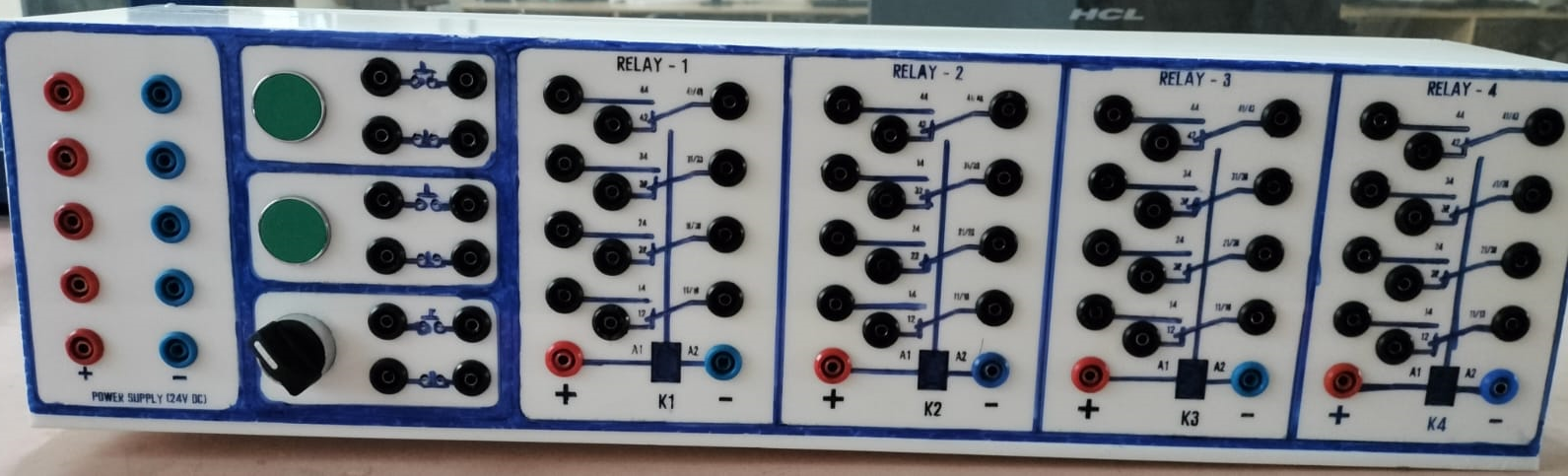

Relay Module

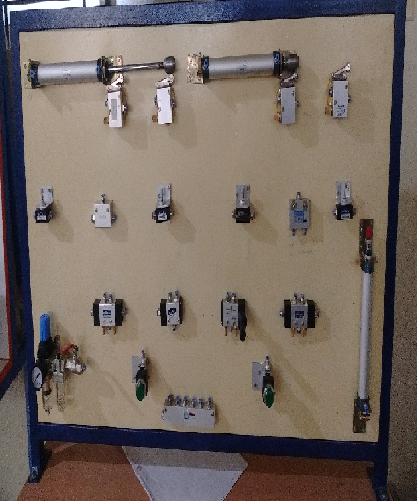

Pneumatic Trainer kit
